| भाग नम्बर | TD035SHED1 |
| ब्रान्ड | TPO |
| साइज | 3.5 |
| आवेदन | MPH |
| संकल्प | 480×640 |
| रचना | LCM |
| चमक | 170 |
| CR | 200:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | TPO |

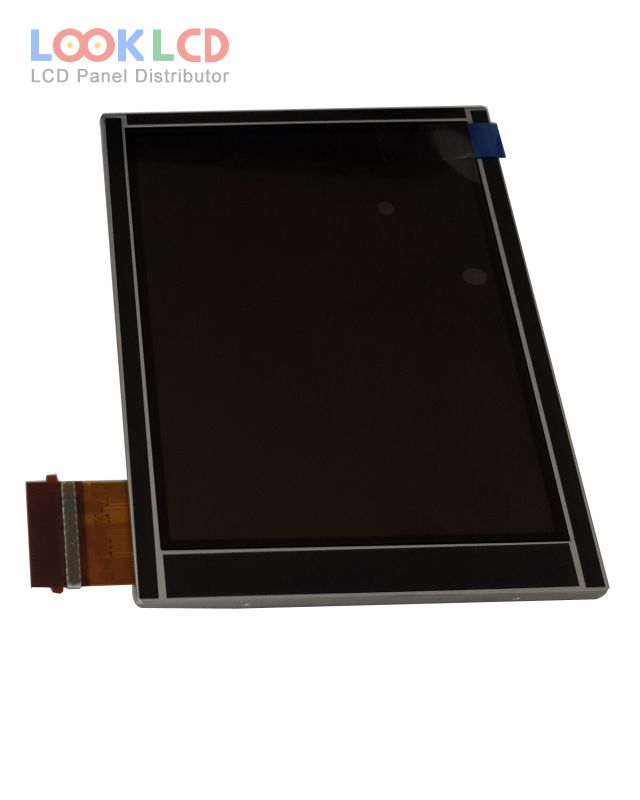

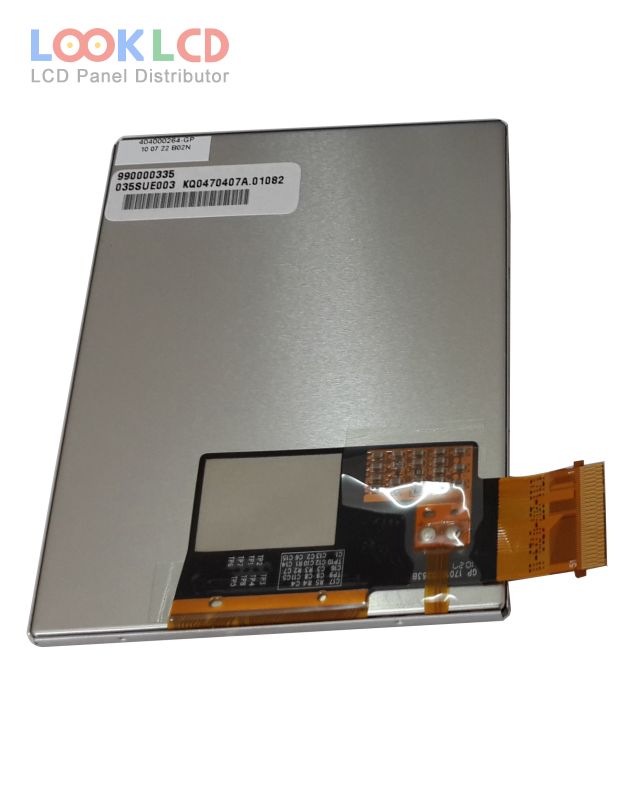

| प्यानल मोडेल | TD035SHED1 |
| प्यानल प्रकार | LTPS TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 480(RGB)×640 , VGA |
| प्रदर्शन मोड | TN, Normally White, Transflective |
| सक्रिय क्षेत्र | 53.28×71.04 mm |
| रूपरेखा | 64×85 mm |
| सतह | |
| चमक | 170 cd/m² (Typ.) |
| विपरीत अनुपात | 200:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193137% |
| प्रतिक्रिया समय | 35 (Typ.)(Tr+Td) |
| हेर्ने कोण | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| बत्ती प्रकार | 6S1PWLEDWithout Driver |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit) + SPI, 51 pins |
| इनपुट भोल्टेज | 3.0/3.0V (Typ.)(VDC/VDDIO) |
| आवेदन | MPH |
