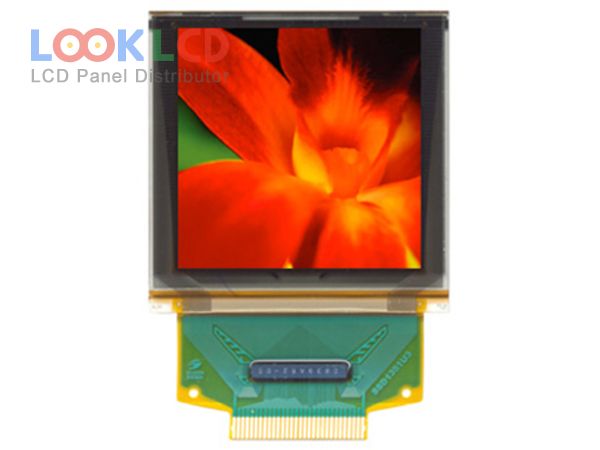

| भाग नम्बर | UG-2828GDEDF11 |
| ब्रान्ड | WiseChip |
| साइज | 1.5 |
| आवेदन | MPH |
| संकल्प | 128×128 |
| रचना | OLED |
| चमक | 90 |
| CR | 10000:1 |
| रंगहरू | 262K |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | Univision |
| प्यानल मोडेल | UG-2828GDEDF11 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.5 inch |
| संकल्प | 128(RGB)×128 |
| सक्रिय क्षेत्र | 26.855×26.864 mm |
| रूपरेखा | 33.8×34×1.7 mm |
| सतह | Antiglare |
| चमक | 90 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit), CIE193163% |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| चालक आईसी | COF Built-in SSD1351 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| इनपुट भोल्टेज | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| आवेदन | MPH |
| A015AN04 V6 | AUO | 1.5 | 280×220 |
| A015AN05 V0 | AUO | 1.5 | 280×220 |
| AM-320240-015A | Other | 1.5 | 320×240 |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
| OEL9M0039-Y-E | Other | 1.5 | 128×128 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
| RGS15128128YR000 | RiTdisplay | 1.5 | 128×128 |
| TD015THEB2 | TPO | 1.5 | 480×240 |
| UG-2828GDEDF11 | WiseChip | 1.5 | 128×128 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| CLAF055LA41 TXX | CPT | 5.5 | 540×960 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| H429AL01 V0 | AUO | 4.3 | 540×960 |
| H650DAN01.0 | AUO | 6.4 | 1080×1920 |
| HSD060FMW1-C00 | HannStar | 6.0 | 540×960 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| LH400WV3-SD04 | LG Display | 4.0 | 480×800 |
| PJ045IC-01F | Innolux | 4.5 | 720×1280 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
