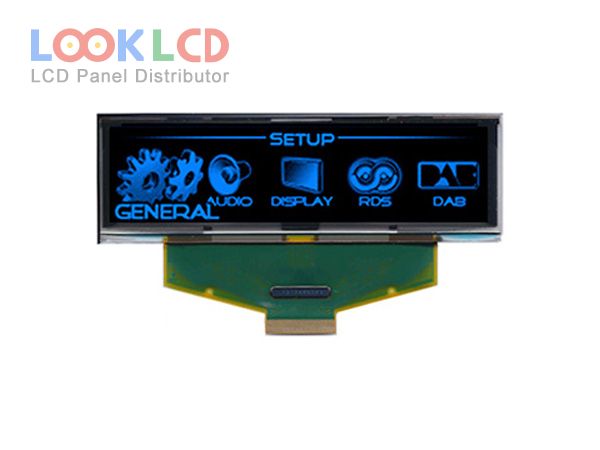

| भाग नम्बर | UG-5664ALBEF01 |
| ब्रान्ड | WiseChip |
| साइज | 3.1 |
| आवेदन | IA |
| संकल्प | 256×64 |
| रचना | OLED |
| चमक | 80 |
| CR | 2000:1 |
| रंगहरू | Grayscale(B) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | Univision |
| प्यानल मोडेल | UG-5664ALBEF01 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 3.1 inch |
| संकल्प | 256×64 |
| सक्रिय क्षेत्र | 76.78×19.18 mm |
| रूपरेखा | 88×27.8×2.1 mm |
| सतह | |
| चमक | 80 cd/m² (Typ.) |
| विपरीत अनुपात | 2000 : 1 (Typ.) |
| प्रदर्शन रंगहरू | Grayscale(B) (4-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(L/R/U/D) |
| चालक आईसी | COF Built-in SSD1322 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| इनपुट भोल्टेज | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| आवेदन | IA |
