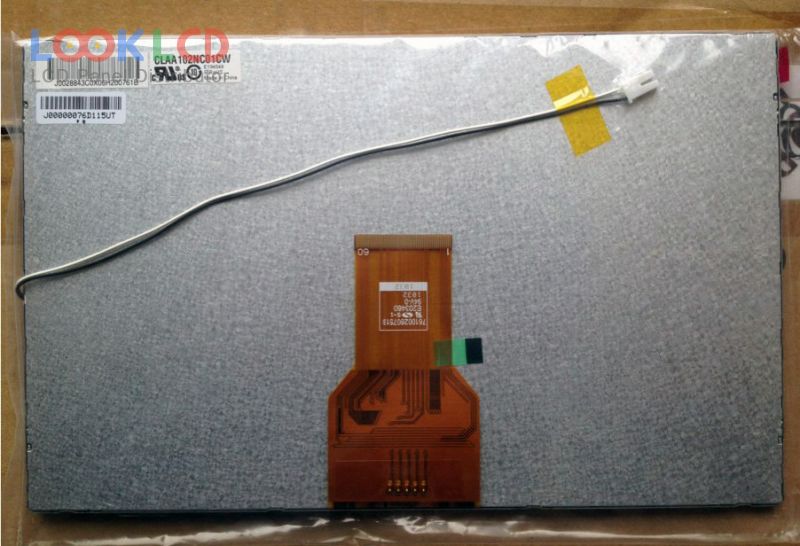

| भाग नम्बर | CLAA102NC01CW |
| ब्रान्ड | CPT |
| साइज | 10.2 |
| आवेदन | NOPC |
| संकल्प | 1024×600 |
| रचना | LCM |
| चमक | 200 |
| CR | 500:1 |
| रंगहरू | 262K/16.2M |
| ब्याकलाइट | WLED |
| इन्टरफेस | LVDS |
| प्यानल ब्रान्ड | CPT |
| प्यानल मोडेल | CLAA102NC01CW |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 10.2 inch |
| संकल्प | 1024(RGB)×600 , WSVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 222.72×130.5 mm |
| रूपरेखा | 235×147×5.4 mm |
| सतह | Antiglare |
| चमक | 200 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| प्रतिक्रिया समय | 20 (Typ.)(Tr+Td) |
| हेर्ने कोण | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 4S6PWLEDWithout Driver |
| संकेत इन्टरफेस | LVDS (1 ch, 8-bit), 60 pins |
| इनपुट भोल्टेज | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| आवेदन | NOPC |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA102NA0DCW | CPT | 10.2 | 1024×600 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| B101AW03 V1 | AUO | 10.1 | 1024×600 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LS075AT011 | Innolux | 7.5 | 1200×900 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W01 | Samsung | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
