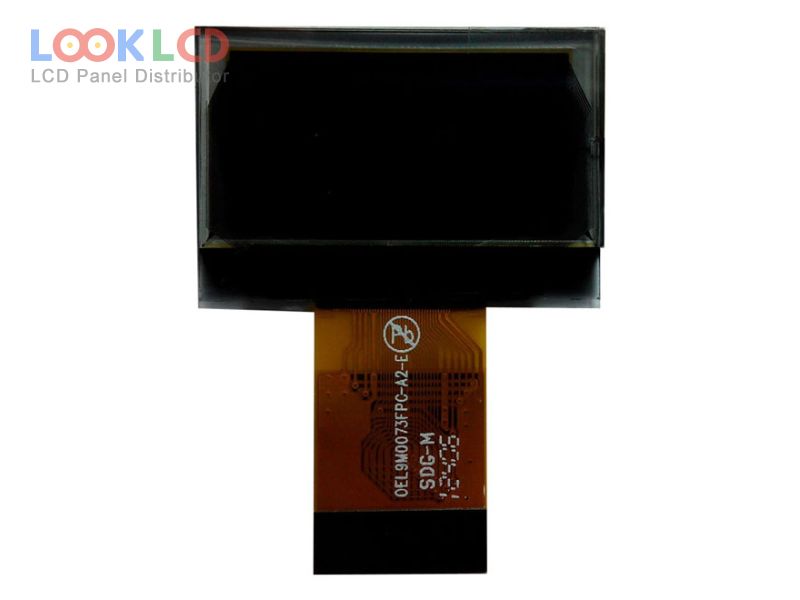

| भाग नम्बर | OEL9M0073-Y-E |
| ब्रान्ड | Other |
| साइज | 1.0 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 85 |
| CR | 10000:1 |
| रंगहरू | Mono(Yellow) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M0073-Y-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 1.0 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 23.02×11.82 mm |
| रूपरेखा | 30×20.16×1.6 mm |
| सतह | |
| चमक | 85 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Yellow) (1-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| चालक आईसी | COG Built-in SSD1308Z |
| संकेत इन्टरफेस | CPU/SPI/I²C, 20 pins |
| आवेदन | IA |
