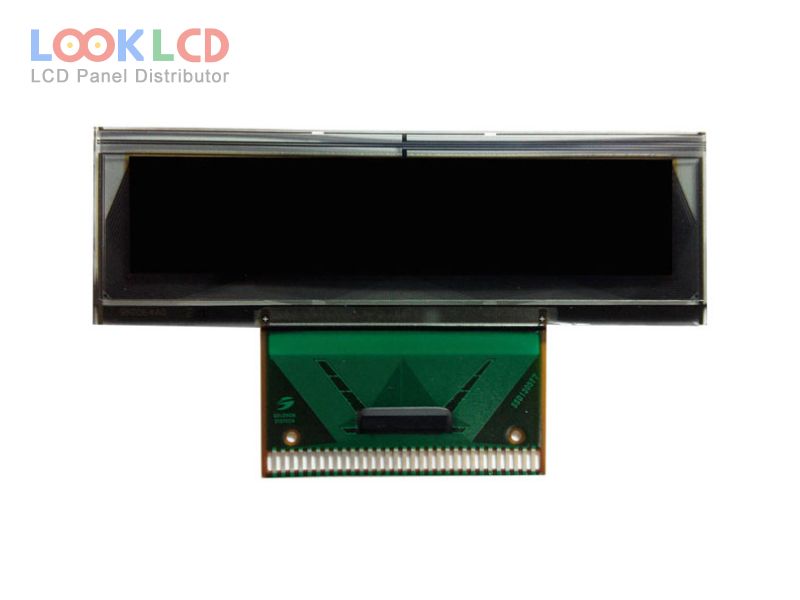

| भाग नम्बर | OEL9M0064-R-E |
| ब्रान्ड | Other |
| साइज | 2.0 |
| आवेदन | IA |
| संकल्प | 128×32 |
| रचना | OLED |
| चमक | |
| CR | 10000:1 |
| रंगहरू | Mono(Red) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | TRULY |
| प्यानल मोडेल | OEL9M0064-R-E |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 2.0 inch |
| संकल्प | 128×32 |
| सक्रिय क्षेत्र | 50.535×10.695 mm |
| रूपरेखा | 59×18.86×1.6 mm |
| सतह | |
| चमक | |
| विपरीत अनुपात | 10000 : 1 (Min.) |
| प्रदर्शन रंगहरू | Mono(Red) (1-bit) |
| हेर्ने कोण | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 100Hz |
| चालक आईसी | TAB Built-in SSD1305T7R1 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| आवेदन | IA |
