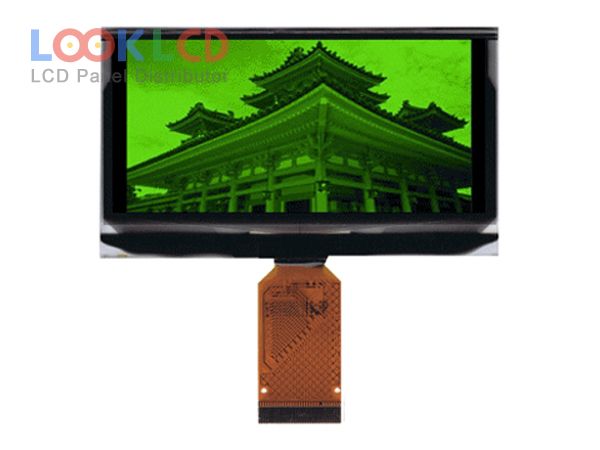

| भाग नम्बर | UG-2864ASGIG01 |
| ब्रान्ड | WiseChip |
| साइज | 2.7 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 120 |
| CR | 10000:1 |
| रंगहरू | Grayscale(G) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI |
| प्यानल ब्रान्ड | Univision |
| प्यानल मोडेल | UG-2864ASGIG01 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 2.7 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 61.41×30.69 mm |
| रूपरेखा | 73×41.86×2.1 mm |
| सतह | |
| चमक | 120 cd/m² (Typ.) |
| विपरीत अनुपात | 10000 : 1 (Typ.) |
| प्रदर्शन रंगहरू | Grayscale(G) (4-bit) |
| हेर्ने कोण | |
| संकेत इन्टरफेस | CPU/SPI, 30 pins |
| इनपुट भोल्टेज | 2.5/15V (Typ.)(VDD/VCC) |
| आवेदन | IA |
