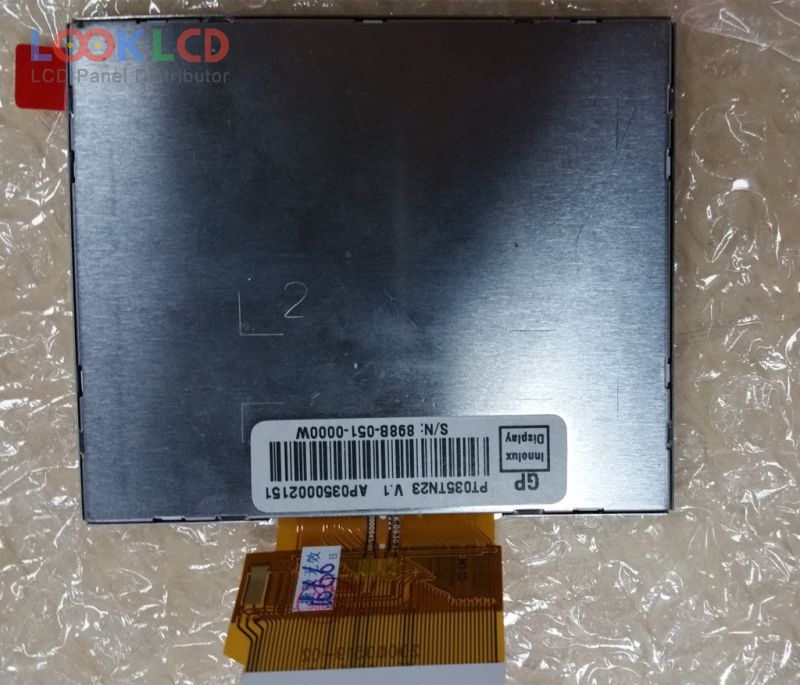

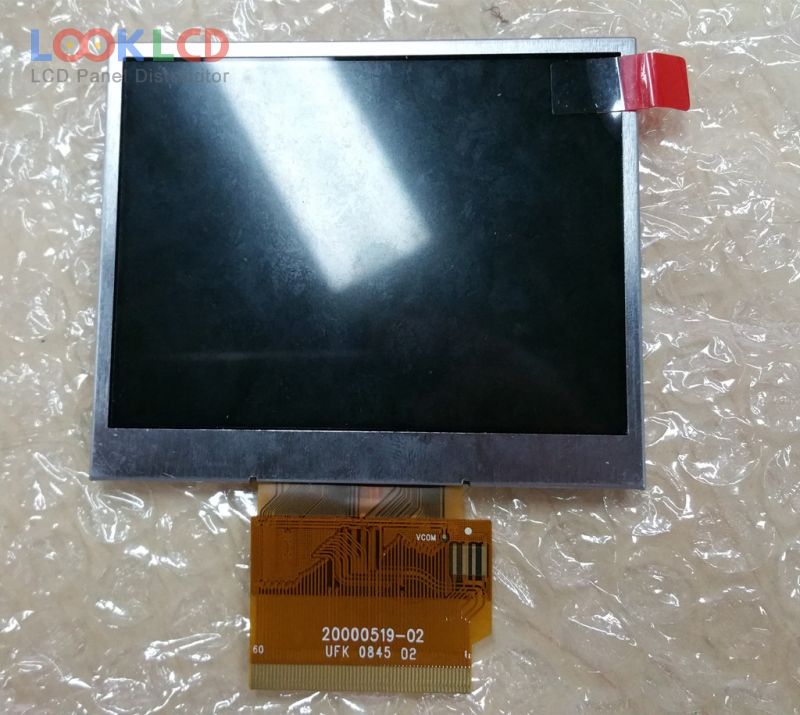

| भाग नम्बर | PT035TN23 V.1 |
| ब्रान्ड | Innolux |
| साइज | 3.5 |
| आवेदन | DSC |
| संकल्प | 320×240 |
| रचना | LCM |
| चमक | 350 |
| CR | 500:1 |
| रंगहरू | 262K |
| ब्याकलाइट | WLED |
| इन्टरफेस | TTL |
| प्यानल ब्रान्ड | INNOLUX |
| प्यानल मोडेल | PT035TN23 V.1 |
| प्यानल प्रकार | a-Si TFT-LCD , LCM |
| प्यानल आकार | 3.5 inch |
| संकल्प | 320(RGB)×240 , QVGA |
| प्रदर्शन मोड | TN, Normally White, Transmissive |
| सक्रिय क्षेत्र | 70.08×52.56 mm |
| रूपरेखा | 76.9×64.4×4.43 mm |
| सतह | Antiglare |
| चमक | 350 cd/m² (Typ.) |
| विपरीत अनुपात | 500:1 (Typ.) |
| प्रदर्शन रंगहरू | 262K (6-bit) |
| प्रतिक्रिया समय | 9/16 (Typ.)(Tr/Td) |
| हेर्ने कोण | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| आवृत्ति | 60Hz |
| बत्ती प्रकार | 6S1PWLED |
| संकेत इन्टरफेस | Parallel RGB (1 ch, 6-bit) + SPI, 60 pins |
| इनपुट भोल्टेज | 3.3V (Typ.) |
| आवेदन | DSC |
| CT035TN02 | Innolux | 3.5 | 320×480 |
| EL160.80.50 IN LC CC | Lumineq | 3.5 | 160×80 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LTV035QV-F04 | Samsung | 3.5 | 320×240 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| PT035TN23 V.3 | Innolux | 3.5 | 320×240 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| A015AN04 V6 | AUO | 1.5 | 280×220 |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TD030MHEB3 | TPO | 3.0 | 320×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
