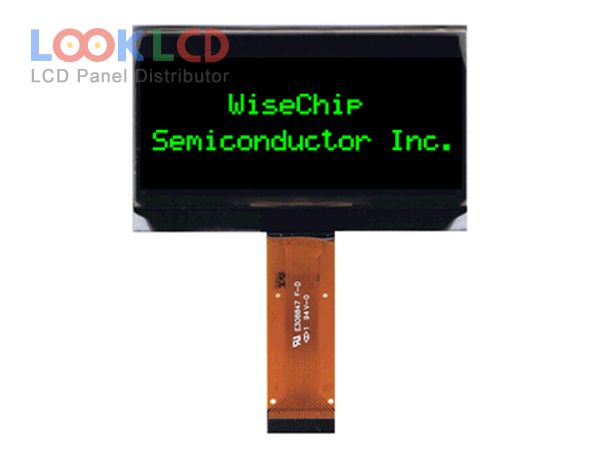

| भाग नम्बर | UG-2864ASGPG01 |
| ब्रान्ड | WiseChip |
| साइज | 2.4 |
| आवेदन | IA |
| संकल्प | 128×64 |
| रचना | OLED |
| चमक | 80 |
| CR | |
| रंगहरू | Mono(Green) |
| ब्याकलाइट | self |
| इन्टरफेस | CPU/SPI/I²C |
| प्यानल ब्रान्ड | WiseChip |
| प्यानल मोडेल | UG-2864ASGPG01 |
| प्यानल प्रकार | PM-OLED , OLED |
| प्यानल आकार | 2.4 inch |
| संकल्प | 128×64 |
| सक्रिय क्षेत्र | 55.01×27.49 mm |
| रूपरेखा | 60.5×37 mm |
| सतह | |
| चमक | 80 cd/m² (Typ.) |
| विपरीत अनुपात | |
| प्रदर्शन रंगहरू | Mono(Green) |
| हेर्ने कोण | |
| चालक आईसी | Built-in SSD1309 |
| संकेत इन्टरफेस | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| आवेदन | IA |
